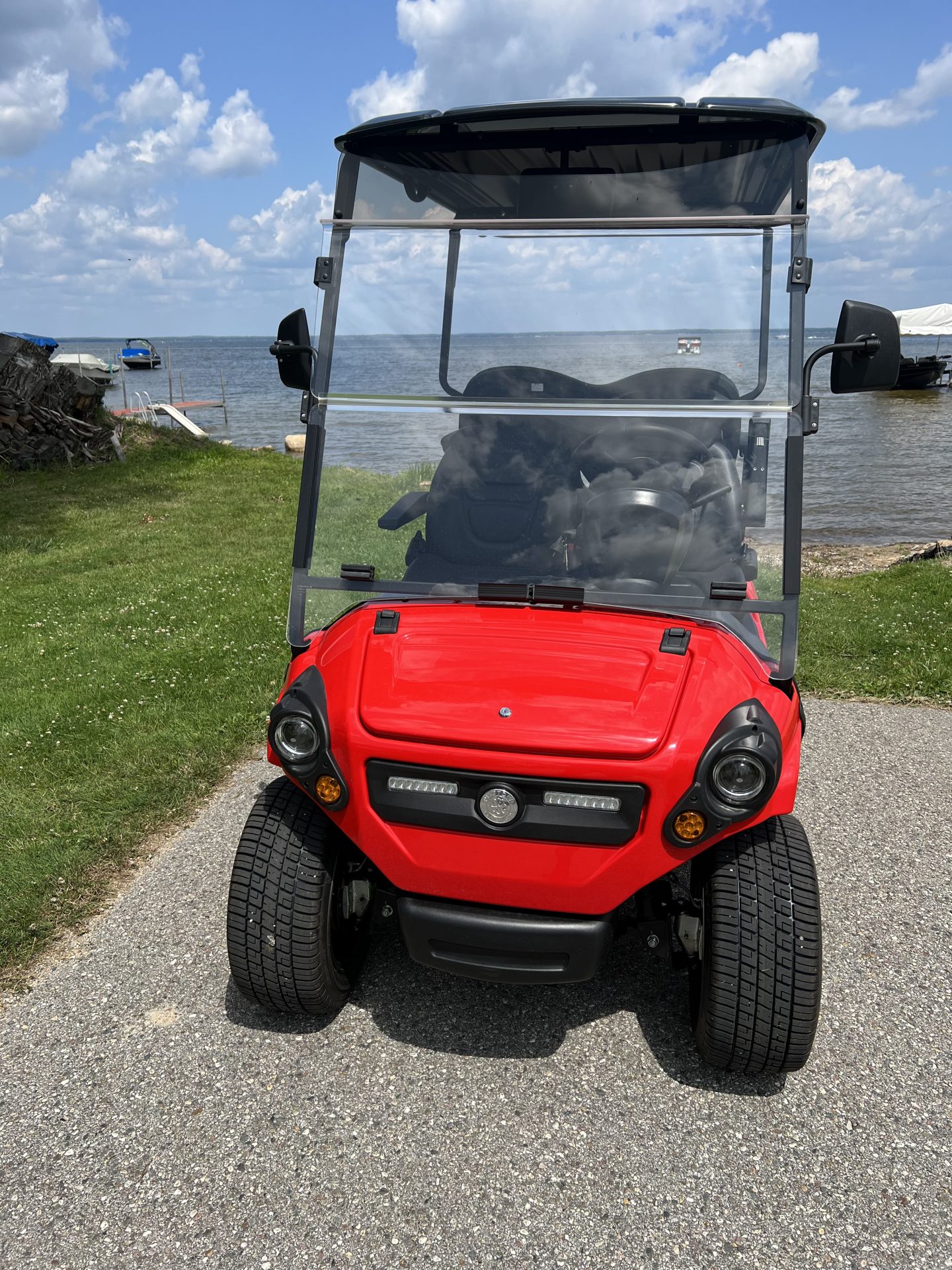

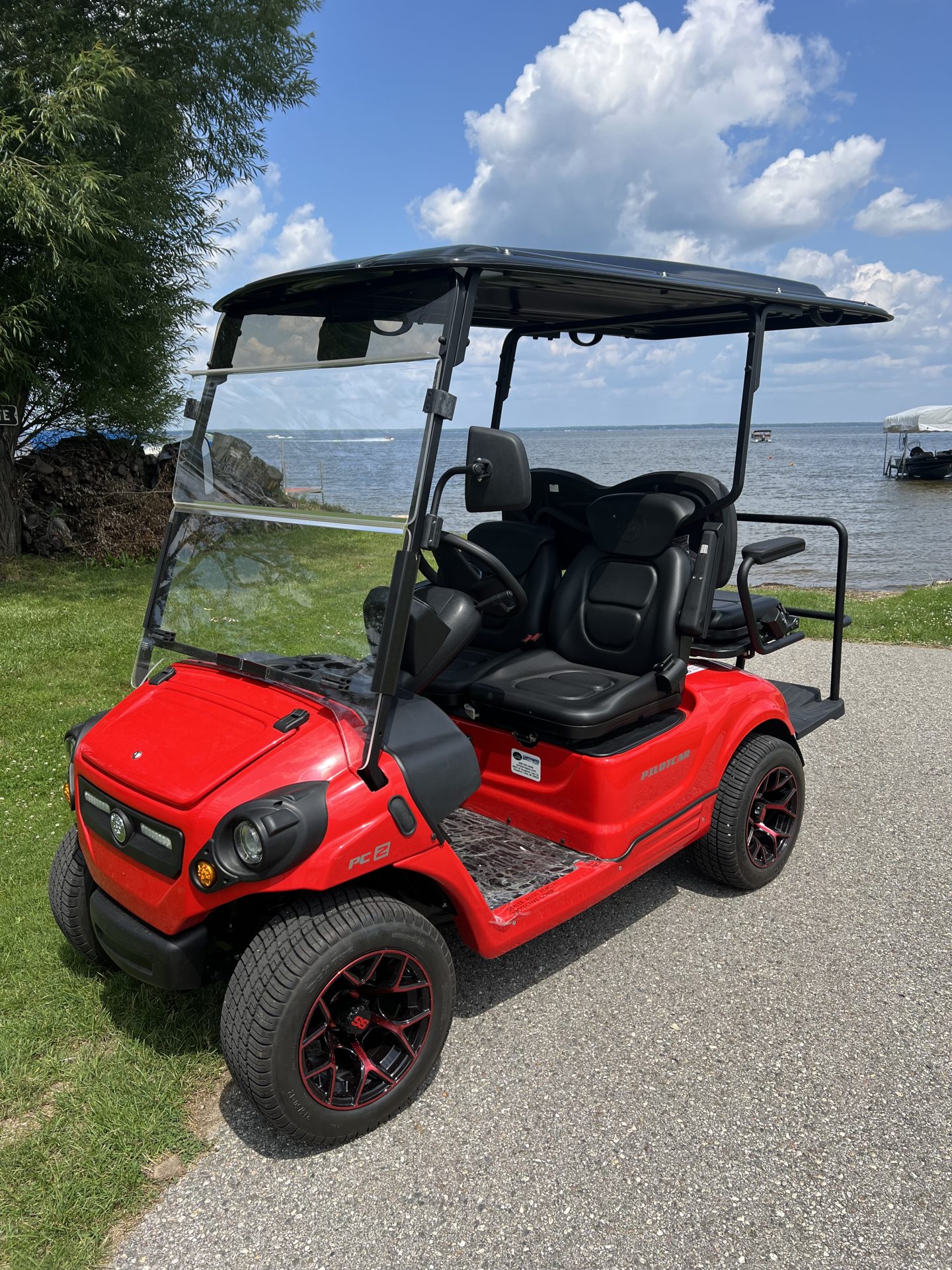

This is a new 2022 Pilot Car PC2+2 (4 seater) golf cart. These cars are top of the line German/Turkish engineered carts and made in Turkey (not China) with independent suspension and 4 wheel hydraulic brakes. This cart includes the upgraded red body with a locking front trunk. Cart includes retractable seatbelts, digital display, turn signals, horn, adjustable bucket seats, USB charging ports, folding rear seat kit, rear safety bar, built in charging system, lithium battery pack, battery monitoring system, extended top, and side and rearview mirrors. These carts run 25MPH and have a 45 mile range per charge
PC-22 Electric Vehicle
Serial Nr: ESWHBNUPE06KW2208YBC08V093223
VIN: NRY226A19NB003223
6 kW (8,16 hp) AC
4-WHEEL HYDRAULIC
TR Lithium Set up (Cables/ Gauge)
3x TR GC2-48-G (Lithium)-102 Ah
RED
Black Extended Suntop (Only applied w/ rear foldable seat)
Polycarbon foldable windshield DOT
Side & Rear View Mirrors

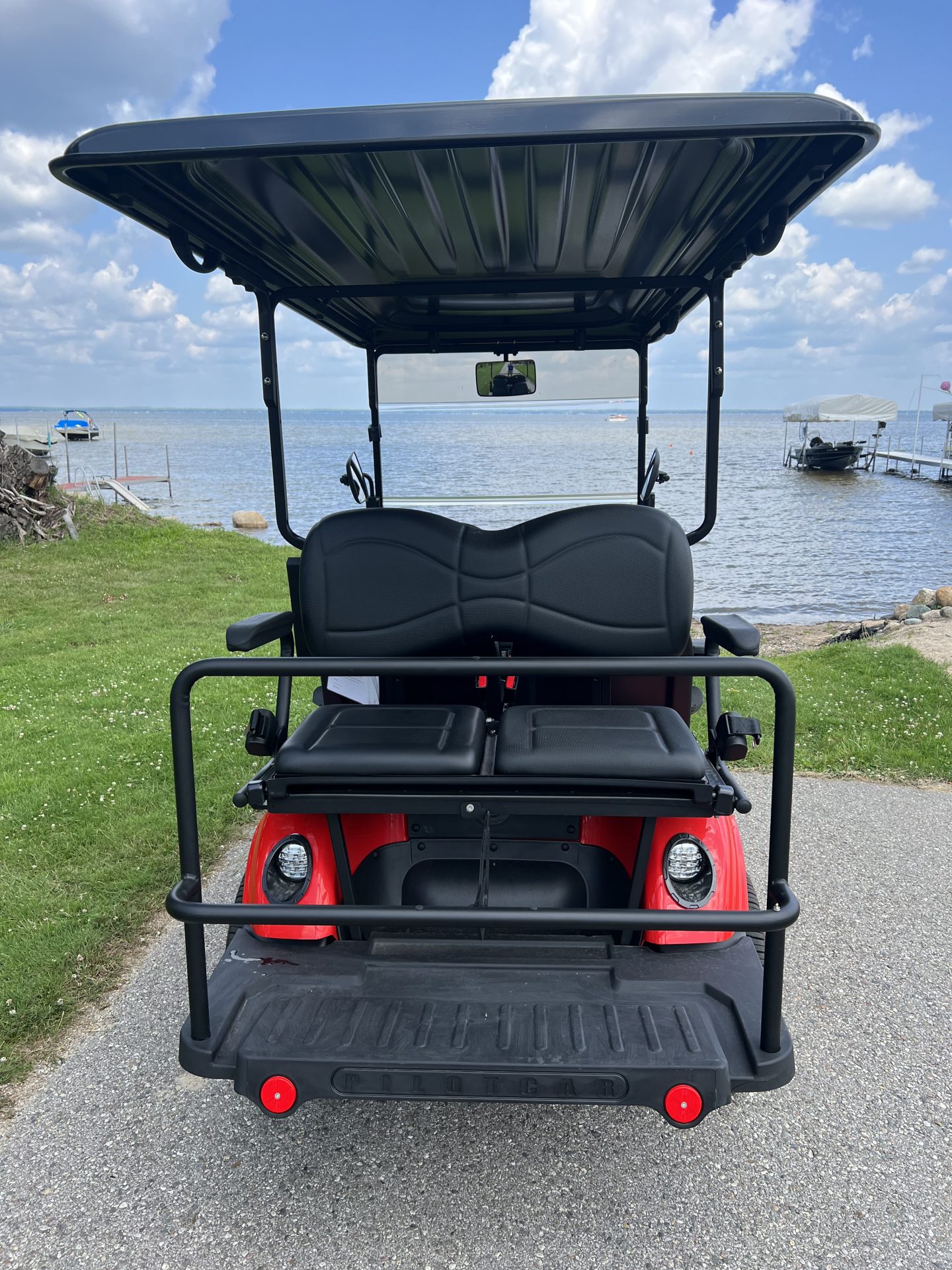

Foldable rear seat for extra 2-passengers
Sport Steering Wheel
Facelift Front Body

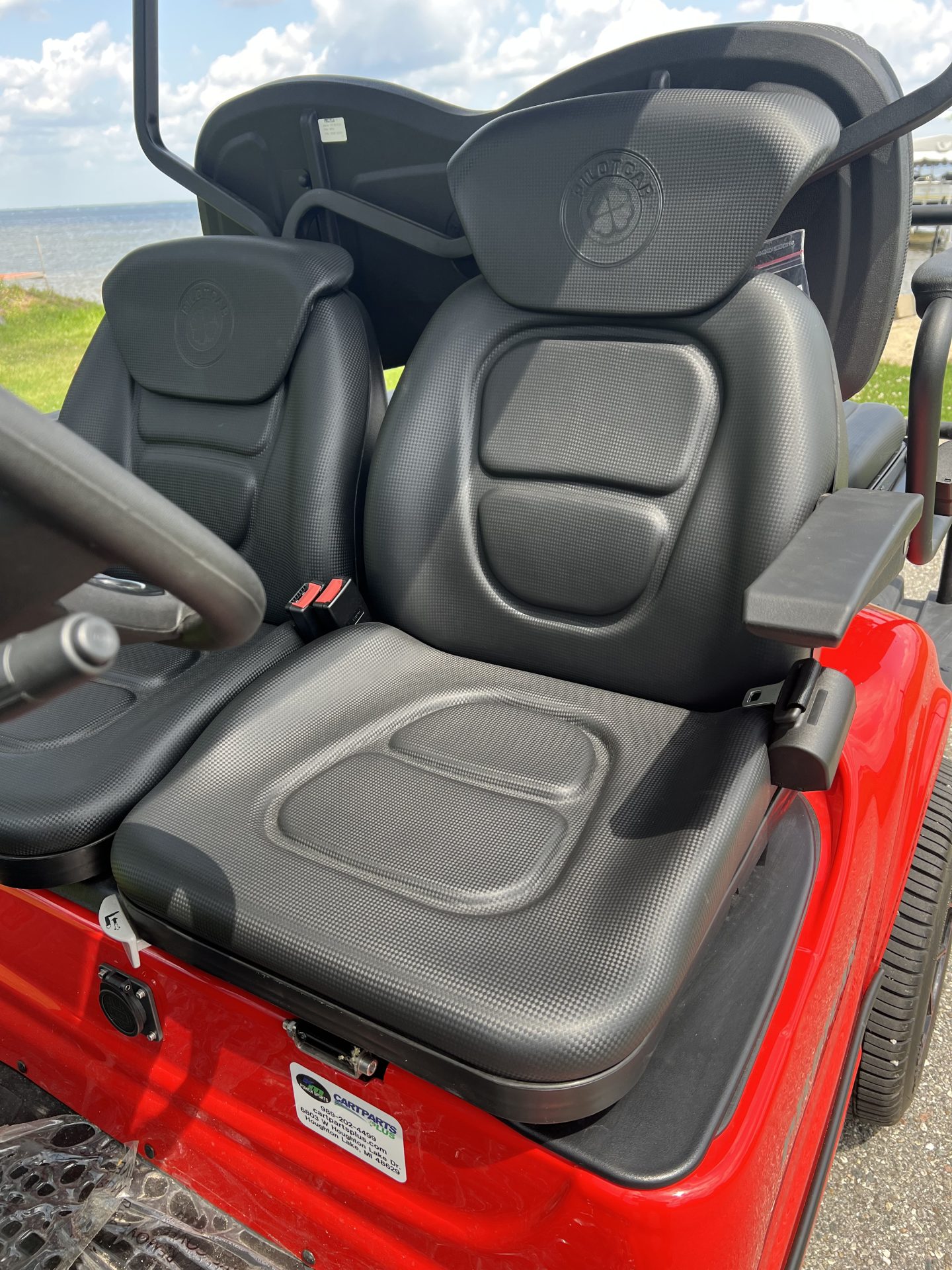

Premium Seat (w/ 2-point seatbelt) Carbon Black
Halogen driving lights, w/ LED DRL (Daytime Running
Lights) (Only applied w/ facelift front body)
LED BULBS
Charging unit

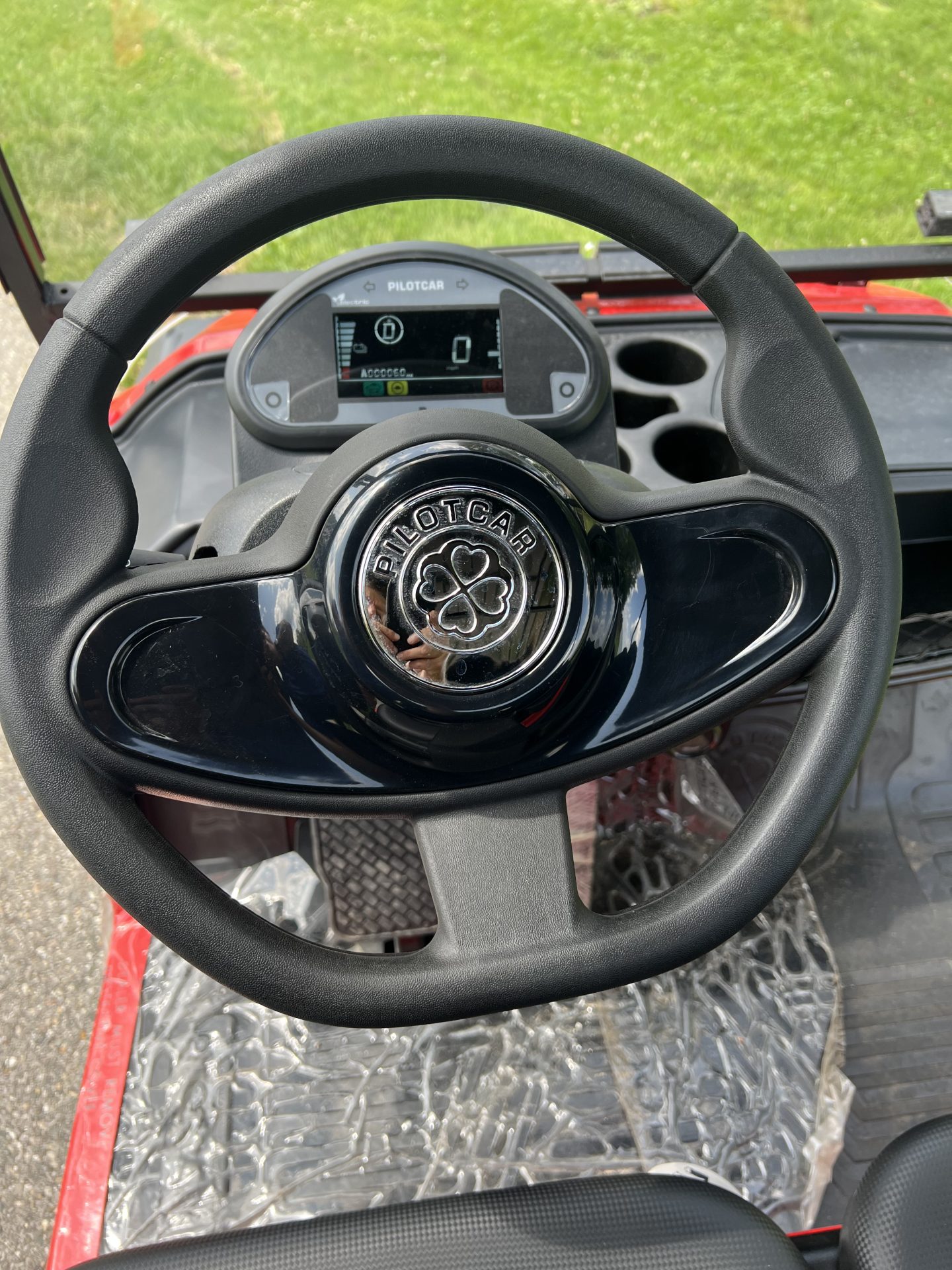

Digital Vehicle-Info Screen (Only applied w/ lighting system)
USB-12 V outlet

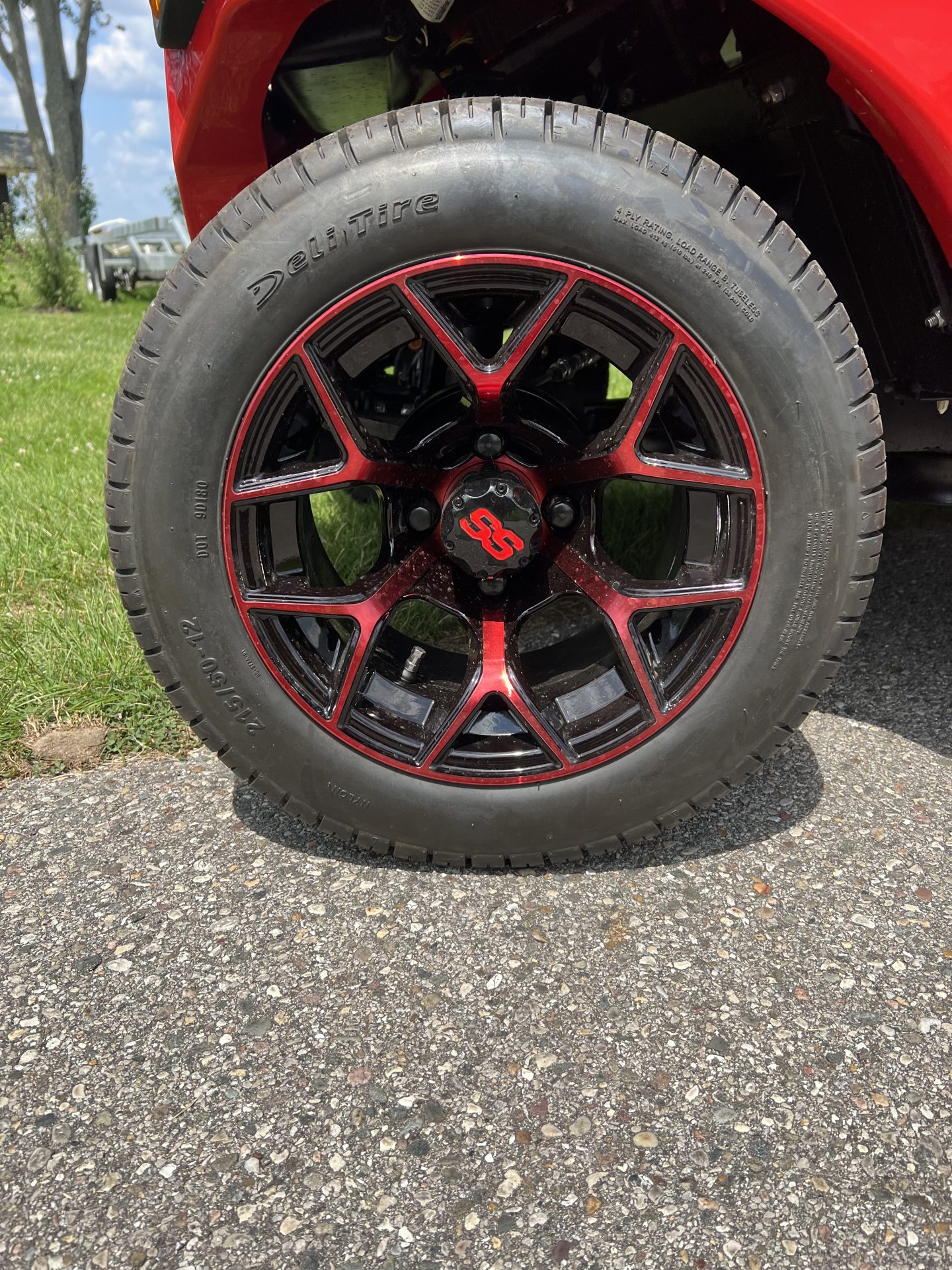

Ninja (Black, Red, White, or Blue) 215/50-12 Deli
(STREET 12″)
POWER
ELECTRIC-48 V (AC)
Motor Power
AC 6 kW (8.20 hp) Rated 12.46 kW (16.95 hp) Peak
Battery
Lithium Battery Package (3-pack)
Charge Unit
Lithium Battery Package
OVARTECH 3.3 kW Onboard
Charge Unit
85-265 VAC@16A 40A/48V
Motor Control Unit
AC
SEVCON (450 A)
STEERING & SUSPENSION SYSTEM
Steering Self-compensating double reduction helical rack-and-pinion
Suspension Front Fully independent McPherson style strut suspension
Suspension Rear Semi independent, swing arm with coil springs over hydraulic shock absorbers
BRAKE SYSTEM
Service Brake
4-wheel hydraulic drum brake system
Parking Brake
Elektromagnetic parking brake
BODY
Body Naturally colored Thermoplastic ABS White, Midnight Blue, Red
Chassis Automotive style steel frame with high corrosion resistance Sanding /E-coating/ Static Wet Paint
PERFORMANCE
Max. Forward Speed 15 mph – 25 mph (24 kph – 40 kph)*
Max. Reverse Speed 5 mph (8 kph)
Range
Lithium Battery Package
55.5 mi (90 km) **
Max. Gradeability25%
Charge Time
Lithium Battery Package
80% – 4 hrs
100% – 6 hrs
Turning Radius 9.8 ft (3 m)
GENERAL
Curb Weight
Lithium Battery Package 886 lb (402 kg) *
Passenger Capacity 11 Passenger 13 Passenger
Load Capacity 881 lb (400 kg)
Tow Capacity 1102 lb (500 kg)
DIMENSIONS
Standart Vehicle w/o Options
Length 94.2 in (2395 mm)
Width 47.8 in (1215 mm)
Height 77.3 in (1965 mm) *
47.2 in (1200 mm) **
Wheelbase 64.5 in (1640 mm)
Ground Clearance 4.3 in (110 mm)
WARRANTY
Warranty
2 years full warranty (Less wearable items)
5 years limited warranty (Motor and motor control unit)
